Introducing the new and improved Tower 05 from TAF—a complete, all-in-one, light-duty tower system for small roof systems, elevation of truss grids, and more.

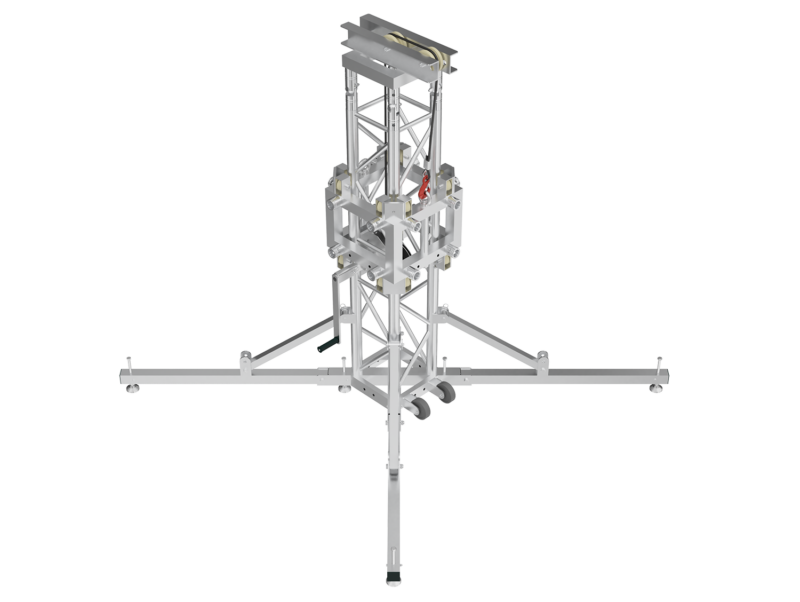

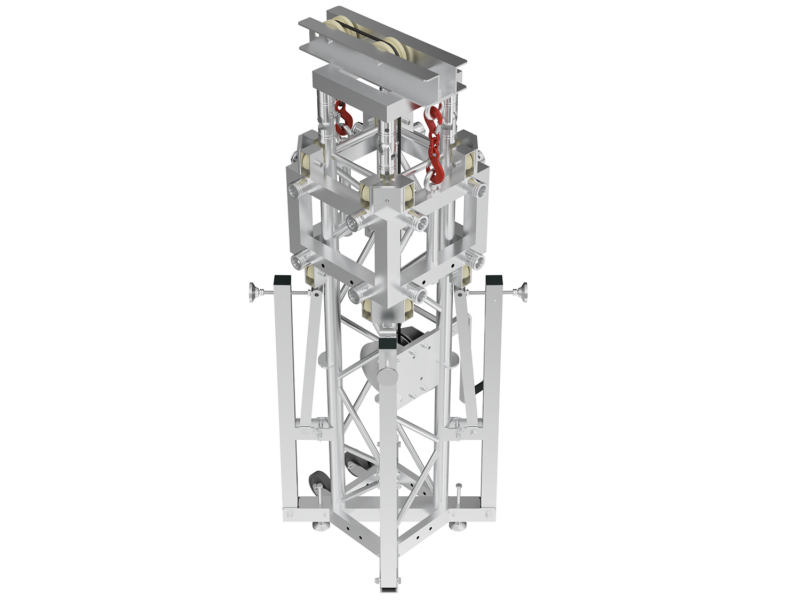

Transport, setup, and use are extremely easy. Just roll out to your location, unfold the outriggers, and attach HT34 truss on top. With HT34’s Quicklock connection system, the buildup is extremely quick and easy. Versatility is also ensured, with a welded sleeve block that allows for a four-way connection of truss segments to suit a wide range of applications.

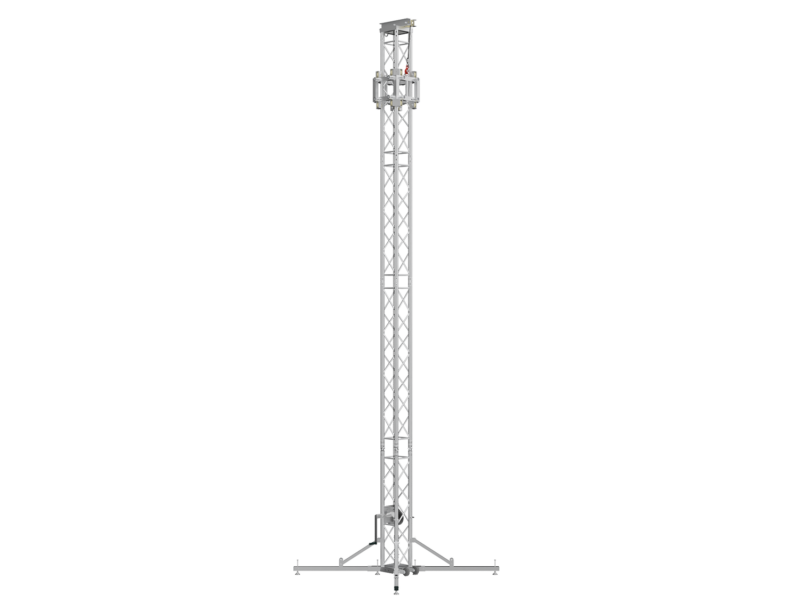

Tower 05 features a maximum lifting height of 21.3 ft (6.5 m) and a maximum loading of 1,100 lbs. (500 kg).

New and improved features:

• Steel, side-to-side rotating feet for improved leveling on a wide range of surfaces
• Adjustable leg braces for increased stability
• Modified sleeve block allows for smoother travel
• Eight holes (two on each side of sleeve block) allow for convenient mounting of accessories
• Chain hoist connection point on top section

Tower 05 comes with all components for immediate use:

• HT34 truss segments (also compatible with FT34 and TT34 truss series’)
• Aluminum baseplate with outriggers
• Sleeve block
• Top section
• Wheels for trouble-free transport and handling
• Hand winch with steel rope
• Connection kit for truss segments and sleeve block

Further information from TAF USA, or to request a price quote: www.taf-usa.com, sales@taf-usa.com, comercio@taf-usa.com, 877-556-1999 (toll free within the U.S.) or 1-386-756-1999 (outside of the U.S.)

Learn more about the new TAF Tower 05 here!
